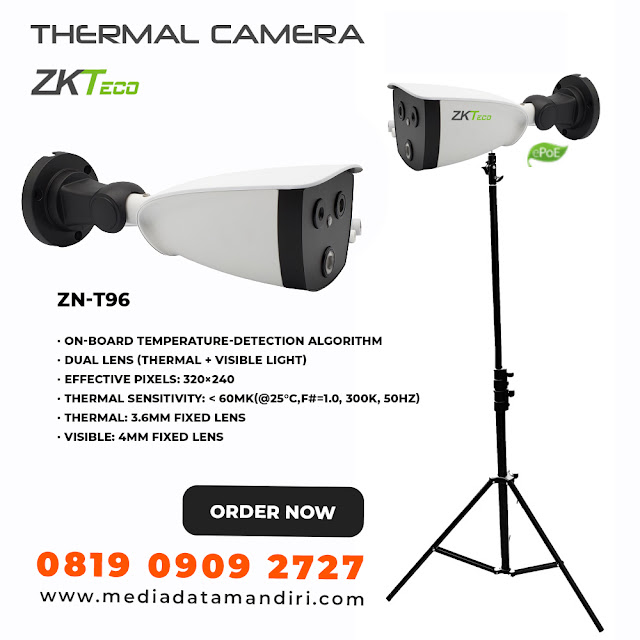

Thermal Camera CCTV Temperature Human Body - ZKTeco ZN-T96
Parameter
| Thermal Camera |
|
| Thermal Detector | Uncooled IRFPA Microbolometer |
| Effective Pixels | 320(H) * 240(V) |
| Pixel Size | 17um |
| Thermal Sensitivity (NETD) | <60mk(@25°C,F#=1.0, 300K, 50Hz) |
| Spectral Range | 8 ~ 14um |
| Image Setting | Polarity LUT / DVE / Mirror / FCC / 3D DNR Brightness / Contrast / ROI |
| Color Mode | Black-Heat /White-Heat/Rainbow |
| Thermal Lens |
|
| Lens Type | Fixed |
| Focus Control | Manual |
| Focal Length | 3.6mm |
| Iris | F1.0 |
| FOV | H: 35°, V: 27° |
| Visible Lens |
|
| Image Sensor | 1/2.8” CMOS |
| Effective Resolution | 1920(H) * 1080(V) |
| Shutter Speed | 1/50 ~ 1/64,000s |
| Wide Dynamic Range | 80dB WDR |
| Min. Illumination |
Color: 0.005Lux @(F1.2, AGC ON)
B/W: 0.001Lux @(F1.2, AGC ON)
|
| S / N Ratio | More than 46dB |
| Focal Length | 4mm |
| Max Aperture | F1.2 |
| FOV | 84° ~ 45° |
| Focus Control | Manual |
| Video and Audio |
|
| Compression | H.265+ /H.265 / H.264 +MJPEG |
| Frame Rate |
NTSC
main stream: 1920X1080@30fps
sub-stream: D1@30fps
PAL
main stream: 1920X1080@25fps
sub-stream: D1@25fps
|
| Bit Rate Control | CBR / VBR |
| Bit Rate |
Visible:
Main stream: 16Kbps-4Mbps
Sub stream: 16Kbps-1Mbps
|
| Digital Zoom | 16x |
| Audio Compression | G711-U,G711-A,PCM,G726,AAC |
| Temperature Detection |
|
| Detection Mode | Body temperature monitoring |
| Detection Preset | Max.10 goals |
| Temperature Alarm |
Out-of-range temperature alarm,
temperature difference alarm
|
| Accuracy |
≤0.3°C (Emission rate, distance,
ambient temperature, etc.)
|
| Response Time | ≤50ms |
| Detection Range | 15°C ~ 150°C (59°F ~ 302°F) |
| Temperature Display Mode |
If temperature difference >5°C,
display absolute temperature value;
If temperature difference ≤5°C,
display relative temperature value
(temperature difference DEV =
highest value - average)
|
| Network |
|
| Ethernet | RJ-45 (10 / 100Base-T) |
| Protocol | RTSP, RTP, TCP, UDP, UPNP, DHCP, PPPoE, ONVIF, GB/T 28181 |
| Interoperability | ONVIF, CGI, SDK |
| Streaming Method | Unicast |
| Max. User Access | 3 Users |
| Web Viewer | <IE11 |
| Web Language | English, Chinese |
| Interface |
|
| Ethernet | 1 Ethernet (10 / 100 Base-T) RJ-45 Connector |
| Audio | 1ch input, 1ch output |
| Alarm | 1ch input, 1ch output |
| General |
|
| Power Supply | DC12V |
| Power Consumption | Max 5W |
| Operating Temperature | -20°C ~ 55°C (-4°F ~ 131°F) |
| Storage Conditions | 0 ~ 90% RH |
| Ingress Protection | IP67 |
| Casing | Metal+Plastic |
| Dimensions (L*W*H) | 246 * 101 * 81 (mm) |
| Net Weight | 1kg |
